FEATURES

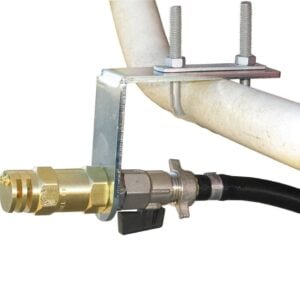

• Model: BN05
• Brass boomless nozzle.
• Minimum recommended pump flow rate 12lpm.
• Up to 74 litres/hectare.
• 180 or 90 degree spray swath with interchangeable nozzle plates.
• On/off tap.
• Steel mounting bracket.
• 10mm hose tail supplied.
• Mounts easily to ATVs, field sprayers, linkage sprayers, utes and more.
• Optimum mounting height between 0.5m and 1.0m above ground.
• Suitable for herbicides, pesticides and fungicides.
• Ideal for rough country spraying, locust control and fire breaks.
• Made in Australia.
• Fast Delivery.

DESCRIPTION

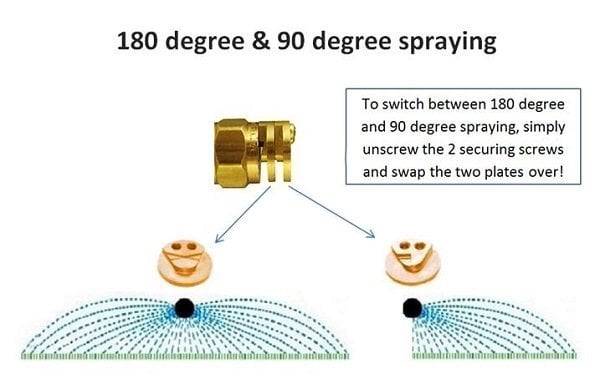

The range of boomless nozzle kits are perfect for rough terrain and hard to reach areas. They allow you to target those areas that standard booms just cant get to, whether it be from trees, fences, pylons or uneven ground. The boomless range are well designed to give a consistent and even spray pattern. The boomless sprayer comes with interchangeable plates. With a quick and easy plate change, you can turn your sprayer from a 180 degree swath to a 90 degree swath to give the user greater control over their spraying and to reduce chemical usage by not spraying areas unnecessarily.

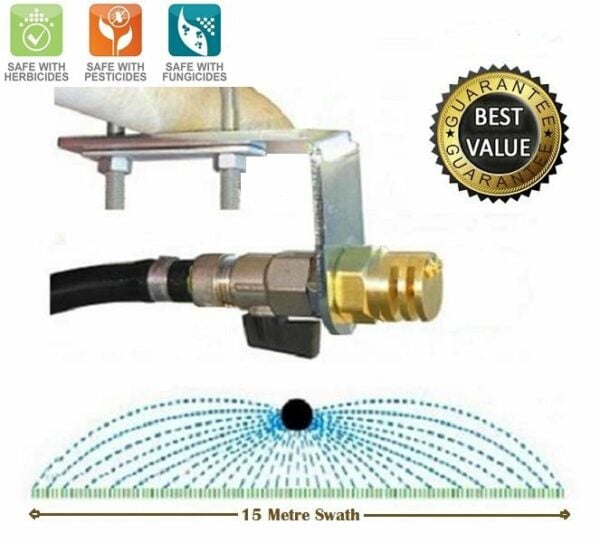

The brass boomless nozzle can deliver a uniform and even spray pattern over a distance of up to 15 metres.

Note: Spray width depends on pressure, flow and wind conditions. U-bolt not included.

Boomless Sprayer.
