FEATURES

• 4000 litre capacity.
• Honda GX200 petrol engine recoil start with 3 year warranty.
• Twin impeller Davey fire pump 400 litres per minute.
• Pressure regulator fitted to pump.
• Heavy duty poly hose reel with 36 metres of 19mm fire fighting hose.
• Adjustable twist action fire fighting nozzle.
• Camlock fittings on pump for quick coupling.
• UV stabilised polyethylene tank with 25 year warranty.
• Food grade poly material that complies with Australian Standards AS4766:2006.
• Heavy duty hot dip galvanised steel frame with fork lift points.
• Ball baffle system fitted for added stability.
• 6 metre bottom fill kit.
• Sight level tube.
• Approximate tare weight: 580kg - approximate weight when full: 4,580kg.
• Dimensions (mm) : L 3020 x W 1540 x H 1600.
• Manufactured in Australia.
• Reliable manufacturers warranty and after sales support.

ADDITIONAL OPTIONS

• 3″ Hydrant fill kit with 6″ air gap./li>
• Single and dual deflector sprayer kits with in-cab remote control.
• 3″ Dribble bar with in-cab remote control.
• Electric start engines.
• Diesel engine upgrades.
• Mine specification options.

DESCRIPTION

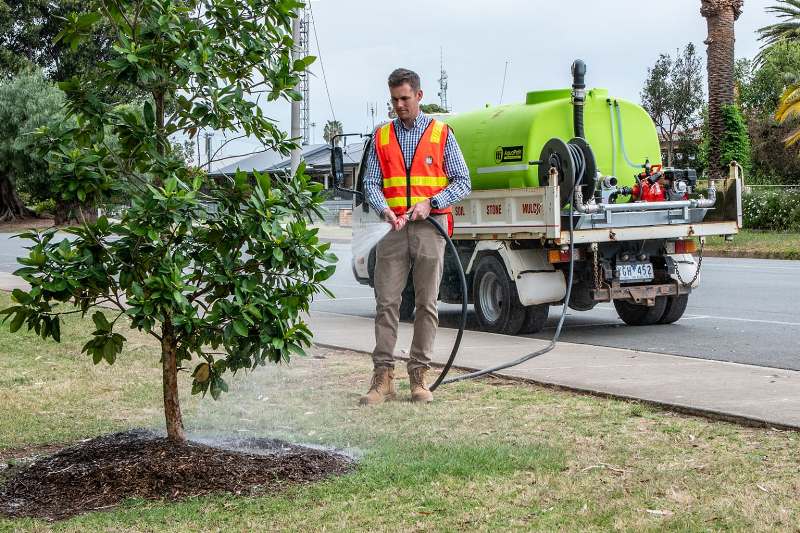

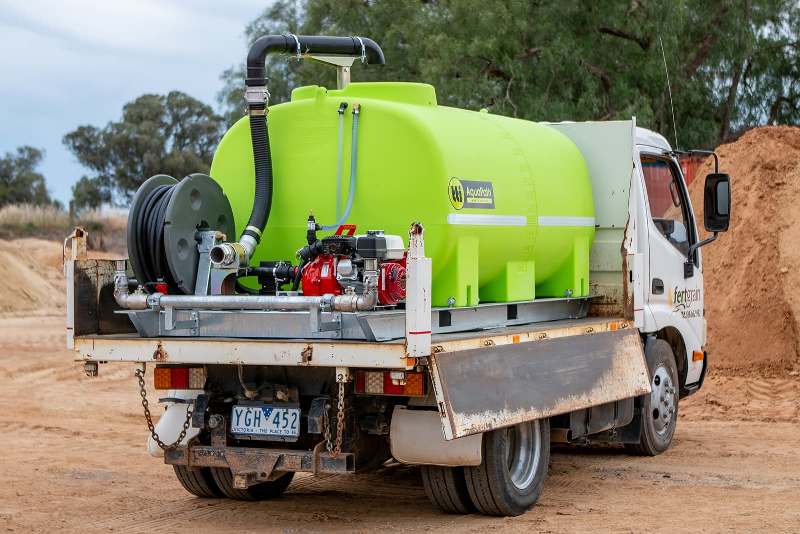

The robust and versatile Aquapath™ truck mounted water tank, used for a wide range of applications including Water Cartage, Dust Suppression, Civil Works, Fire Suppression, Washing Down and Tree Watering. This slip on water delivery unit easily slids on the back of any trailer, flat tray or tipper truck and has the option for loading legs to be fitted to the heavy duty galvanised frame.

DISCLAIMER

Unit dimensions and weight may vary slightly due to manufacturing process. Quoted pump flow rates are open flow. Flow rates in real world applications will vary. Units weight will increase if optional extras are added.

Please Note: Deflector sprayers, hydrant fill kit and flashing beacon shown in images are optional which can be added and do not come standard with the unit. Deflector sprayers and dribble bar with in-cab remote options will require a connection to a 12 volt supply.

Slip on water tanks.

4000 litre TTi AquaPath.
