800L Quik Spray Ute Sprayer - 100 Metre Reel - Honda GX160
FEATURES
- 800 litre tank capacity.
- UV stabilised polyethylene tank.
- Honda GX160 5.5hp electric start engine with a 3 years warranty.
- Bertolini 580 psi, 34 litre per minute diaphragm pump.
- 100m single retractable hose reel with powder coated frame.
- 12 volt battery for electric start, charged by engine.
- Direct Coupled hose reel motor, 150 watt motor, high power low revolutions – 60 rpm.
- 10mm high grade nylon Supa Slip hose with a 1 year warranty.
- Manual override button facilitates powered retraction without the use of the remote control.
- 300 meters remote control range at a frequency of 915 MHz.
- Radio receiver comes with a 5 year warranty.
- Karin 3 outlet pressure controller and gauge calibrated in bar and psi.
- 4 metre twin core flex and 50 amp Anderson plug set for connection to vehicle battery to power reel retraction, radio equipment and electric start*.
- Litres marked for easy reading (when optional site tube fitted).
- Steel powder coated mounting frame for easy lifting.
- Pump filter to remove debris and impurities, ensuring clean and efficient pump operation.
- Australian Made.
- Dimensions: 2055 x 1400 x 790 (L x W x H).
- Base length: 1917 x 1180 (L x W)
- Approximate weight: 205kg.
- Full manufacturer’s warranty and after sales support.
ADDITIONAL OPTIONS
- 9hp Honda engine coupled to 54 litre per mintue Bertolini pump and 4 outlet pressure controller.
- T400 spray gun.
- Galvanising of steel mounting frame.
- Tank baffle bones small – 1 per 40 litres.
- Honda oil drain.
- 1 1/4″ Plumbing kit tank drain line.
- Lifting bar.
- 150m hose reel.
- Forklift mounts.
- Fast Venturi style filler system.
- Floating filter and 7 metres of suction hose to use with venturi.
- Tacho tiny meter
- Sight gauge.
DESCRIPTION

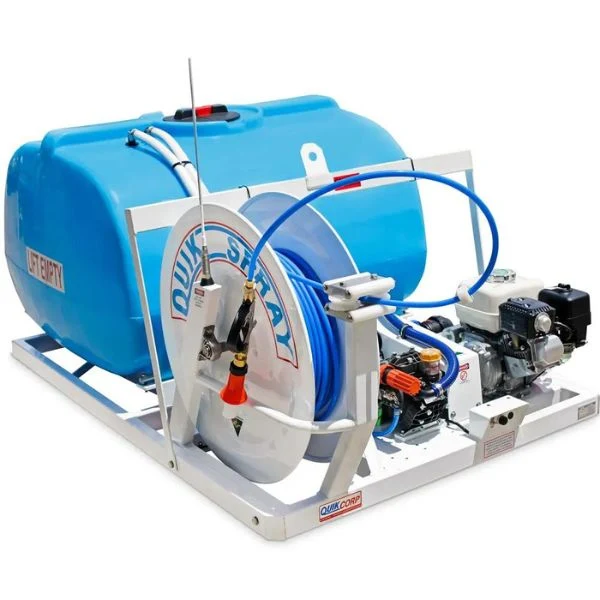

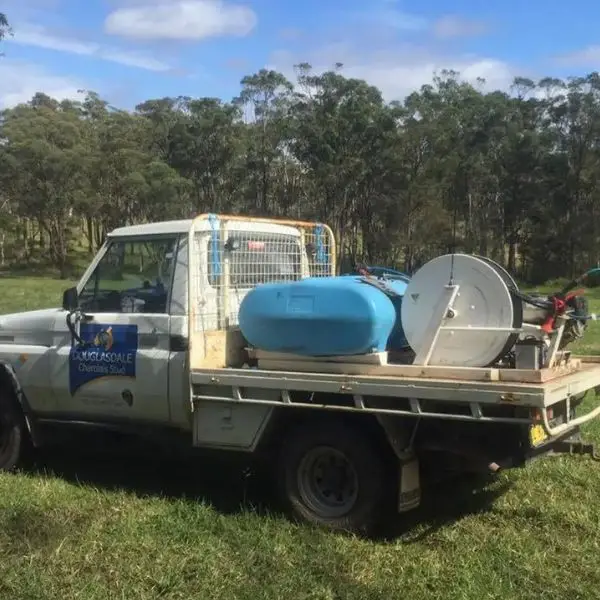

The Quik Spray ute sprayer is a highly capable weed control solution designed for UTVs and Utes. Equipped with a dependable Honda engine and a 12 volt electrical system, it offers efficient and effective operation. You can mount the tank on your single cab ute or trailer for easy transport. Additionally, the retractable hose reel with remote control functionality simplifies the spraying process.
Tackle those hard to reach areas with ease! The long hose, reaching up to 200 meters, lets you cover more ground without needing to move the unit as often. For even larger jobs, QuikSpray is also available in 400 and 600 litre tank sizes.
DISCLAIMER
Tank dimensions and weights may vary slightly due to manufacturing process. Quoted flow rates are open flow. Flow rates in real world applications will vary. Images are indicative only. Additional options are not included in price and must be added to the base model. Please contact our office for further information including pricing.
Quik Spray Ute Sprayer.
Quik Spray.
