FEATURES

• 1200 litre capacity water / fire fighting trailer.
• Tough UV stabilised polyethylene tank with 25 year warranty.
• Honda GX200 engine with 3 year manufactures warranty.
• Davey twin impeller fire pump 400 litres per minute open flow.
• 36 metres of 19mm heavy duty fire fighting hose reel.
• Adjustable twist action fire fighting nozzle.
• Ball baffle system fitted to improve stability and reduce slosh and surge in transit.
• Heavy duty hot dipped galvanised steel trailer frame with 5 year warranty.
• All terrain tyres and 15″ Landcruiser wheels.
• 65mm 2T rated galvanised single axle trailer with heavy duty leaf spring suspension.
• Chequer plate steel mudguards.
• Jockey wheel.
• 50mm tow hitch.

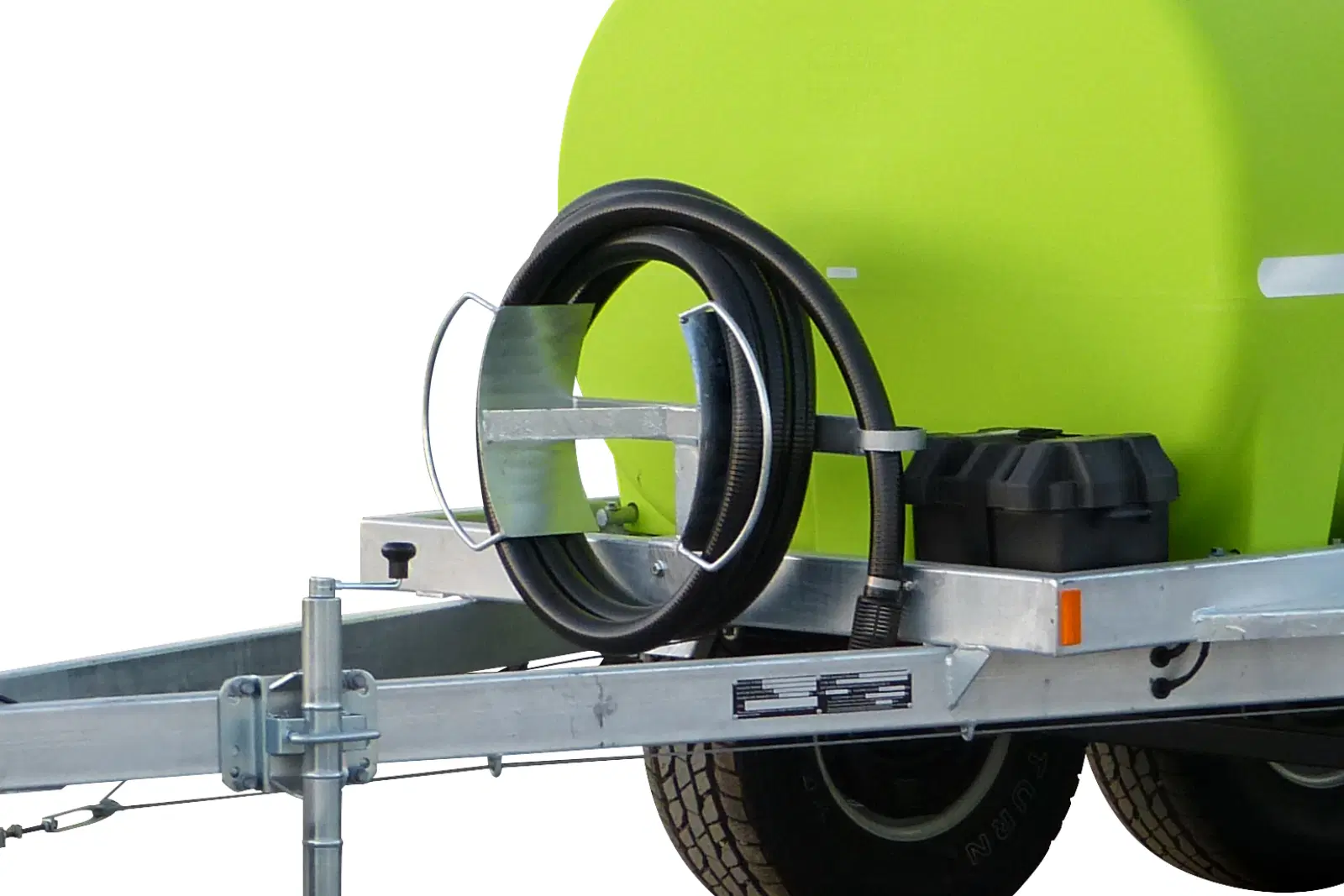

• 6 metre bottom fill kit with bracket.  Quickly fill the tank through the pump from an external water source.
• Camlock fittings on bottom fill kit for quick connection.
• Rear pump plate and hose reel for operator safety.
• Adjustable pressure regulator with return line to tank.
• 455mm hinged lid for easy filling and access.
• Lever ball valve on tank outlet.
• Dimensions 4000 x 1900 x 1410 L x W x H (mm).
• Approximate weight 600kg.
• Manufactured in Australia.
• Please note: no brakes or handbrake fitted to 'On Farm' models.

ADDITIONAL OPTIONS

• Honda GX200 electric start engine with battery pack.
• Yanmar diesel, recoil or electric start engine.
• Quick fill hydrant fillers; overhead funnel or plumbed to side of tank.
• Dust suppression deflector sprayers and dribble bars.
• Full Mine spec options.

DESCRIPTION

This premium line of fire fighting tanks provide a reliable and secure cartage option. These solutions, which offer the best volume transfer, combine a hot dipped galvanised, fully load rated trailer with a baffled tank for stability to create a reliable and secure cartage solution. They come with 15 inch Landcruiser wheels which provides optimal ground clearance and mobility along with easy to wash checker plate mud guards. Ideal for fire suppression, burning off, property protection, back burning, transferring water, watering trees, washing down and dust suppression.

DISCLAIMER

The on farm trailer model does not comply with road registration requirements and can not be registered for on road use. The on farm trailer does not have brakes or LED lighting to comply with road registration requirements. Fire water trailer dimensions may vary slightly due to manufacturing process. Only trained and experienced personnel should use fire fighting equipment with extreme care.

1200L Water Trailer.

TTi FirePatrol15.
