Green Wash Down Hose Reel
Manufacture in Australia these heavy duty green hose reels are engineered to maximise operator safety, ease of use and reliability.
Why use a green hose reel? The green colour represents and is purposed for the use of water for wash down purposes.
Our Green Hose Reels consist of a steel drum with a heavy duty bearing for improved durability, 36m x 19mm hose, nozzle, inlet pipe, isolation valve, interlock and handle.
FEATURES

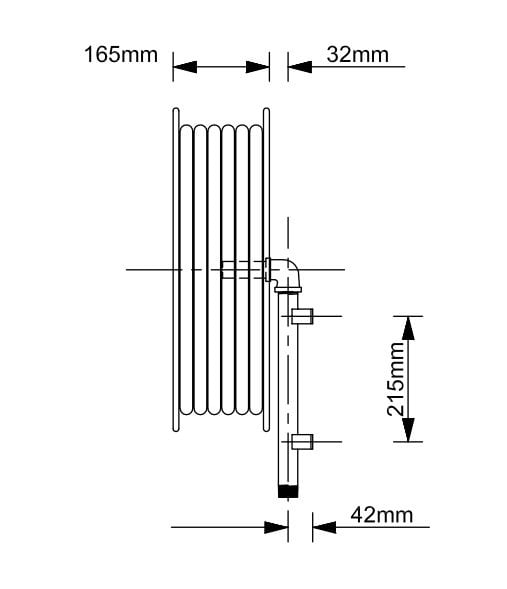

Dimensions:
- Diameter 555mm - Depth 239mm
Material:
- Side Plates: CR-F Steel. Green
- Spacer Pins: Mild Steel. Zinc Plated
- Hose: PVC 19mm Internal Diameter
- Hose Length: 36 Metres
- Nozzle: DR Brass
- Guide Arm: Swivel. Zinc Plated
- Bracket: Easy-Fit. Galvanised
- Barrell Union: F&F. Galvanised
- Spindle: DR Brass
- Waterway: DR Brass
- Isolation Valve: DR Brass. 25mm M & F #304 Stainless Steel Interlock & Handle
OPTIONS AVAILABLE
- Galvanised free standing mounting frame
Oxquip's hose and reel range extends across multiple colours including;
- Red: Fire
- Lilac: Recycled Water
- Green: Rainwater or Wash-down
- Blue: Foam
DISCLAIMER: Images are indicative only. Dimensions may vary slightly.
