FEATURES

• 120 litre capacity.
• UV stabilised polyethylene chemical resistant tank with 15 year warranty.
• Designed for chemicals, pesticides and herbicides.
• Constructed from corrosion resistant materials.
• Safety valve activates only when pressed down by an inverted drum.
• 455mm hinged lid with a breather for ventilation.
• Load chemicals into your tank at ground level.
• Calibration markings makes it easy to read level of contents
• Facilitates quick and easy drum cleaning and drum rinsing.
• Enhanced graphics for improved level indication.
• Dimensions (mm) - 595 (L) x 600 (W) x 600 (H).
• Dimensions with steel frame (mm) - 695 (L) x 600 (W) x 800 (H).
• Approximate weight - 7kg.
• Approximate weight with frame and drain fittings - 15kg.
• Australian made.
• Full manufacturers warranty.
• Pictured with optional mounting frame and fittings *.

ADDITIONAL OPTIONS

• Rotating rinse nozzle and valve with 1 inch ball valve for quick and easy triple rinsing of chemical drums.
• Rotating nozzle operates at 3000 rpm at 3 bar pressure.
• Drain fittings.
• Venturi suction. Inducting and mixing liquid chemicals into main spray tank. Induct liquid content up to height of 1.8m.
• 5mm suction venturi to suit pump flow of 20 - 50 l/min, 2 - 15 bar, 29psi – 218psi.
• 9mm suction venturi to suit pump flow of 100 – 150 l/min, 7 - 15 bar, 102psi – 218psi.
• Galvanised steel frame.

DESCRIPTION

Make your chemical drum cleanups easier with Rinse Master Chemical Rinse Bins, the ultimate solution for being environmentally responsible and having hassle free operations. These bins are made for triple rinsing empty drums, ensuring a quick and easy process. Our range is crafted from durable, corrosion resistant material, offering various sized bins with versatile nozzles suitable for any cleanup task. The ground level loading feature makes transferring chemicals to your tank exceptionally easy.

To boost efficiency, just add a 5mm or 9mm suction venturi to your 120Litre chemical rinse bin. These bins have an impressive induction height of up to 1.8 meters, making transferring liquid content a breeze. For optimal performance, ensure the venturi line drops into the tank's top with no sharp turns hindering the free flow of chemicals.

Choose Rinse Master chemical rinse bins for eco friendly and efficient chemical drum cleanups. Maintain cleanliness, environmental friendliness, and hassle free operations with these bins! For further insights into our range of chemical rinse bins, please reach out to our helpful team.

DISCLAIMER

Images are indicative only. Tank dimensions are approximate only and may vary slightly due to manufacturing process. Only trained and experienced personnel should use equipment with extreme care. Additional options are not included in price and must be added to the base model.

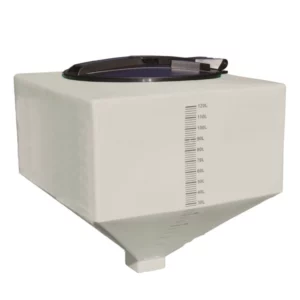

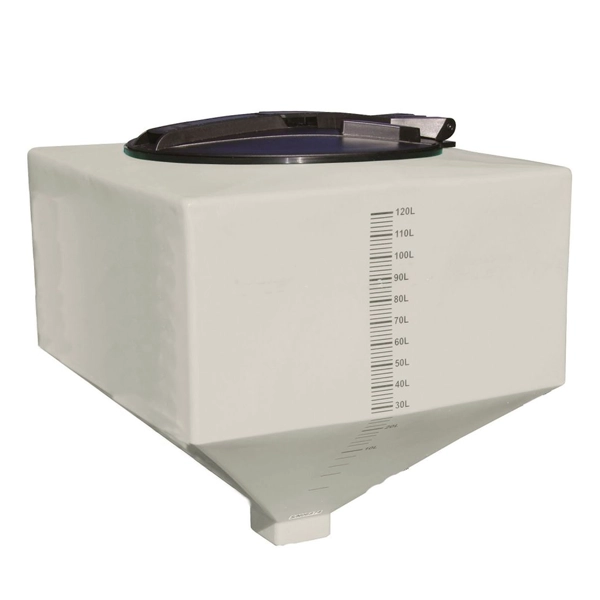

120Litre Chemical Rinse Bin.
