FEATURES

• 300 litre tank capacity.
• UV stabilised polyethylene tank.
• Honda GX160 5.5hp electric start motor with 3 years warranty.
• Bertolini 580 psi, 40 litre per minute diaphragm pump.
• 12 volt battery for electric start, charged by engine.
• 100m single retractable hose reel with powder coated frame – QRSS.
• 10mm high grade nylon Supa Slip hose with a 1 year warranty.
• Direct coupled hose reel motor - 150 watt, high power low revolutions – 60 rpm.
• Manual override button facilitates powered retraction without the use of the remote control.
• 300 meters remote control range at a frequency of 915 MHz.
• Radio receiver comes with a 5 year warranty.
• Control panel for manual operation of motor and hose reel.

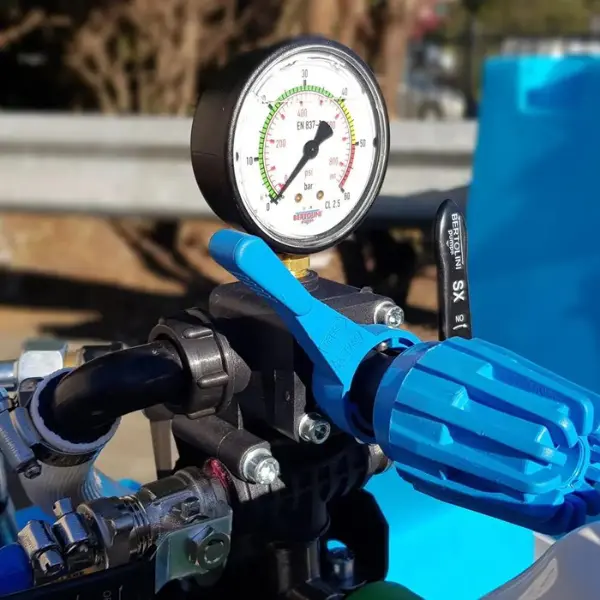

• Karin 3 outlet pressure controller and gauge calibrated in bar and psi.
• Litres marked for easy reading (when optional site tube fitted).
• Aluminum and stainless steel framework with 4 lifting points.
• Pump filter to remove debris and impurities, ensuring clean and efficient pump operation.
• Australian Made.
• Approximate weight: 130kg
• Dimensions (L x W X H)(mm): 1200 x 880 x 940
• Full manufacturer’s warranty and after sales support.

ADDITIONAL OPTIONS

• T400 spray gun.

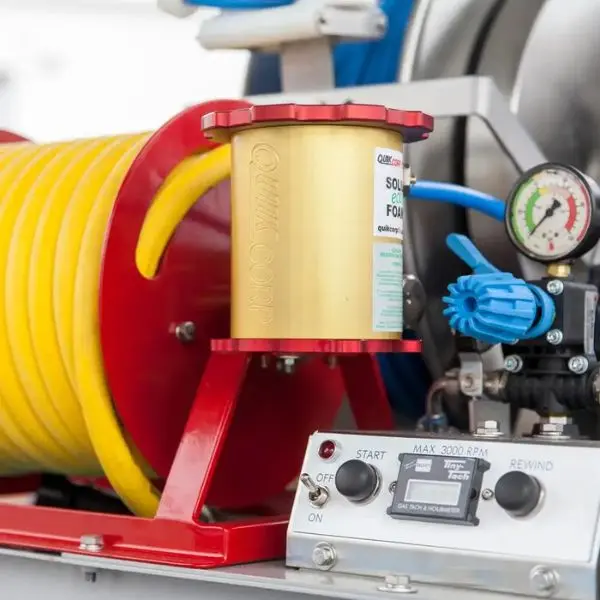

• 15 metre manual fire hose reel with nozzle and foam dispenser.
• Sight gauge.
• Tank baffle bones small - 4 per 100 litres.
• Fast Venturi style filler system.
• Floating filter and 7 metres of suction hose to use with venturi.
• Tacho tiny meter.
• Honda oil drain.
• 1 1/4" Plumbing kit tank drain line.

DESCRIPTION

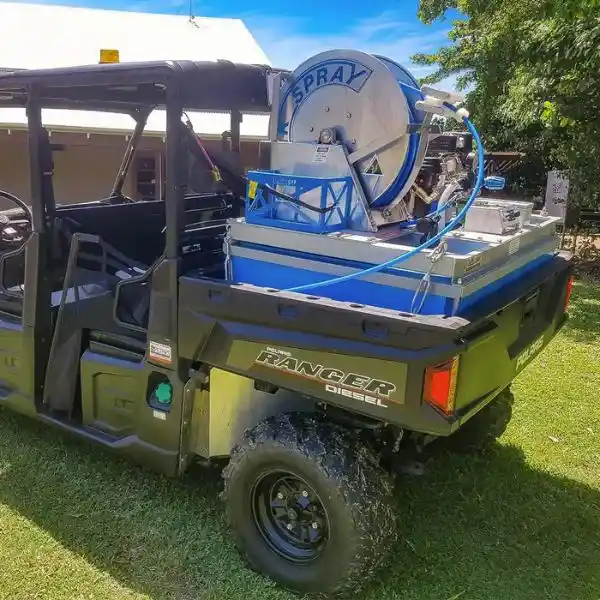

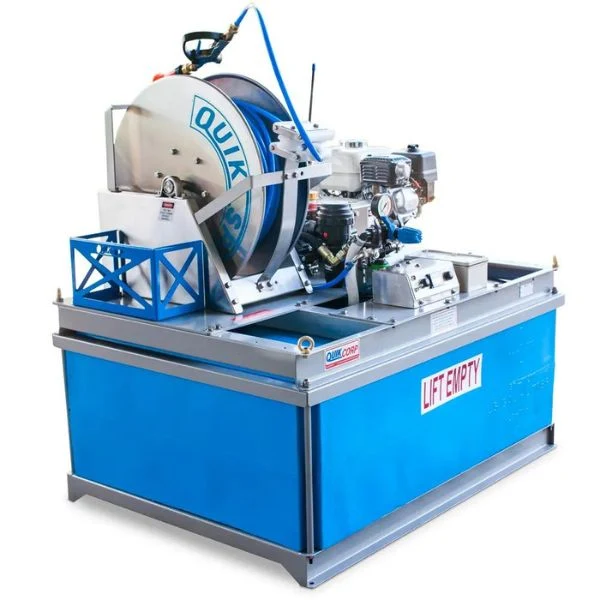

The QuikSpray UTV300 and UTV400 tanks are the ultimate solutions for weed control spraying in the agricultural and landscape industries. Engineered with versatility and durability in mind, these UTV spray systems redefine efficiency and reliability in the field.

Manufactured from high grade, UV stabilised polyethylene, these tanks are designed to withstand the harshest conditions, ensuring long term durability and performance. Equipped with a powerful, high flow pump that delivers consistent pressure, the 300L Quik Spray UTV300 weed sprayer guarantee uniform spray coverage, reducing wastage and improving application efficiency. Additionally, the simple controls and easy to read gauges make operation simple and hassle free, allowing you to focus on the task at hand. Furthermore, with a range of attachments and accessories available, these tanks are perfect for a variety of applications, from pest control and fertilisation to irrigation and cleaning.

At Oxquip, we pride ourselves on being industry leaders in UTV spray systems. Our reputation for excellence is built on years of experience. Thus, the QuikSpray UTV300 and UTV400 tanks are meticulously tested and refined to provide superior performance, making them a trusted choice for professionals and enthusiasts alike.

DISCLAIMER

Tank dimensions and weights may vary slightly due to manufacturing process. Quoted flow rates are open flow. Flow rates in real world applications will vary. Images are indicative only. Additional options are not included in price and must be added to the base model. Please contact our office for further information including pricing.
