FEATURES

• 600 Litre capacity.
• UV Stabilised Polyethylene tank with 15 years warranty.
• Built-in Flexi Link technology.
• Impact resistant and chemical resistant.
• 100 metre Buddy Smart Reel with 3 year warranty and “My-Pace” function – multiple speed remote,
• Overrun protection, low voltage cut out.
• Honda GX200 motor with 3 year warranty.
• Maruyama diaphragm pump, 33 L/min 580psi.
• Automatic hose reel complete remote control and 100m of 10mm chemical spray hose.
• Heavy duty Turbo 400 spray gun with adjustable spray nozzle. Fitted with swivel to prevent tangling up.
• Adjustable pressure regulator with pressure gauge.
• Regulator fitted with bypass/return line to tank.
• Easy to clean shut-off suction filter.
• High quality chemical and UV resistant pressure and suction hoses.
• Twist style lid with debris basket filter.
• Extremely strong hot dipped galvanised steel forklift pockets.
• 17 litre flush tank for quick cleaning.
• Safe with Herbicides, Pesticides & Fungicides.
• Dimensions L x W x H (mm) - 1260 x 1100 x 920
• Full manufacturers warranty & after sales support on all UTV spraying tank.
• Australian made.

ADDITIONAL OPTIONS

• Maruyama pump 45 lpm 40 bar 580psi.
• Bertolini pump 54 lpm 40 bar 580psi
• Available in 360 and 600 litre capacity tanks.
• 100 and 150 metre hose reels.
• Single and twin electric auto-rewind hose reels.

DESCRIPTION

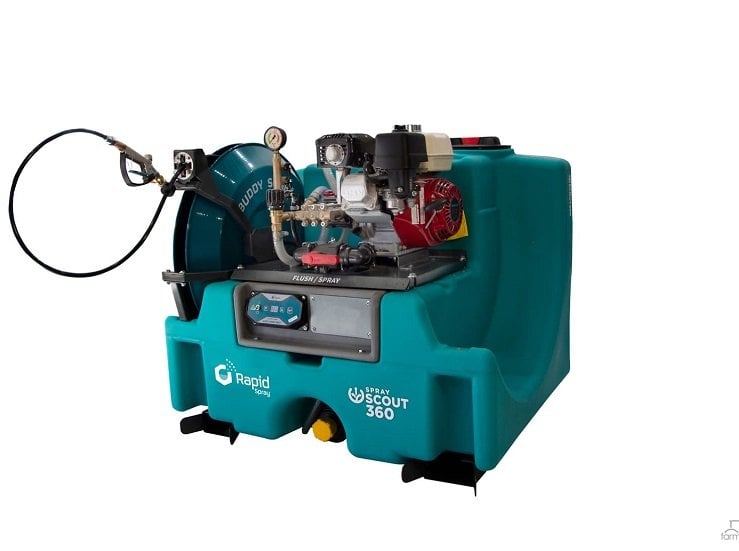

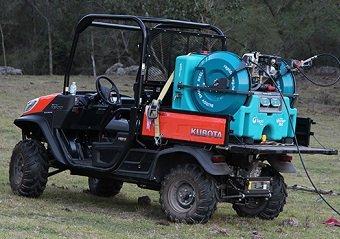

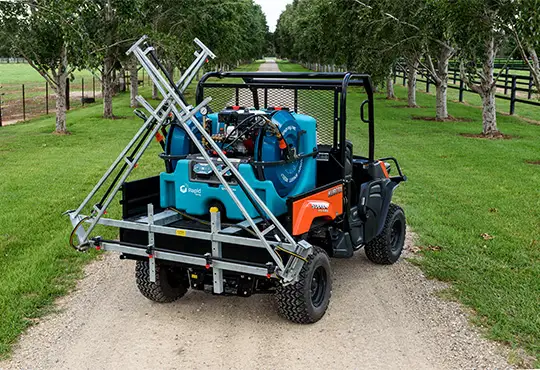

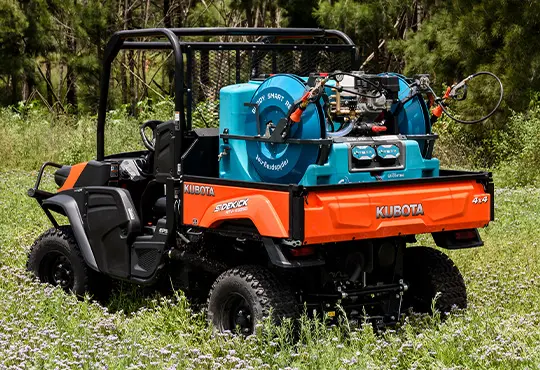

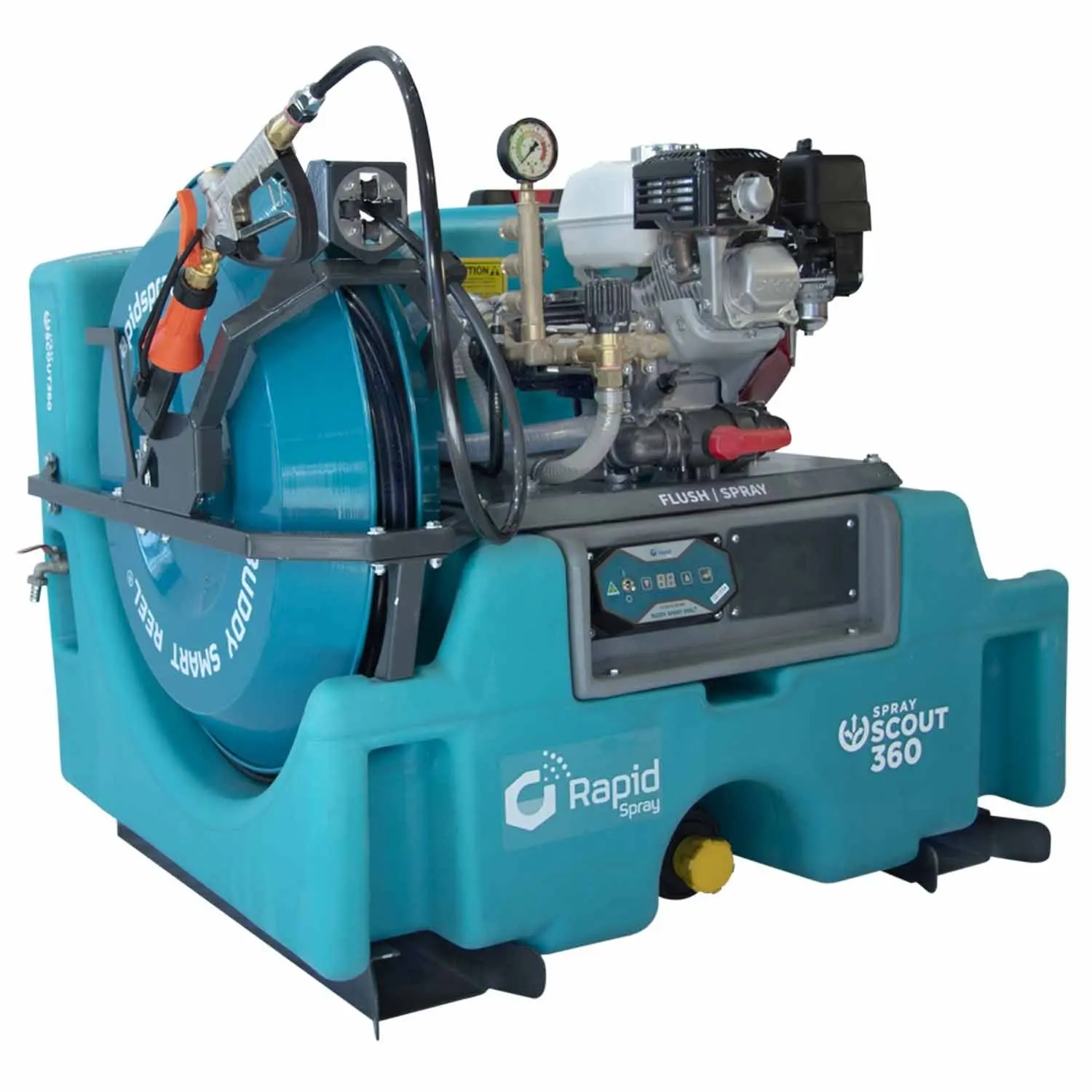

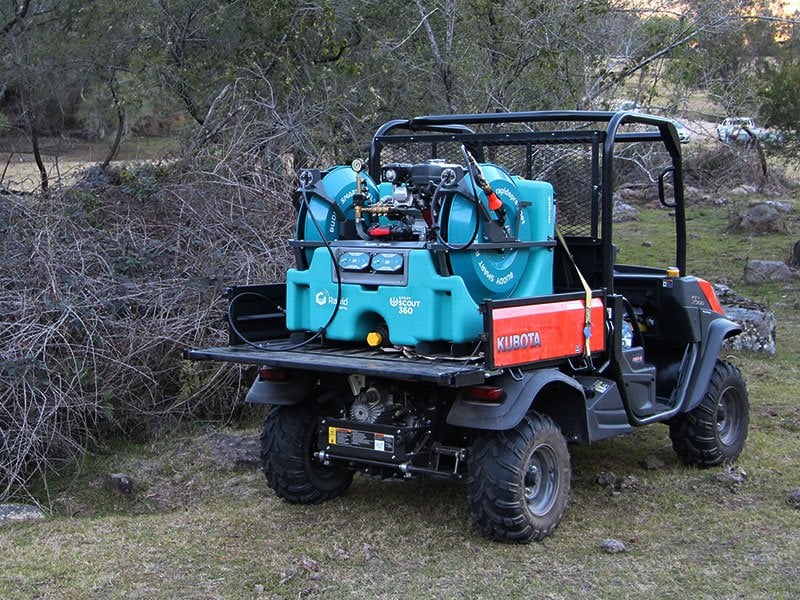

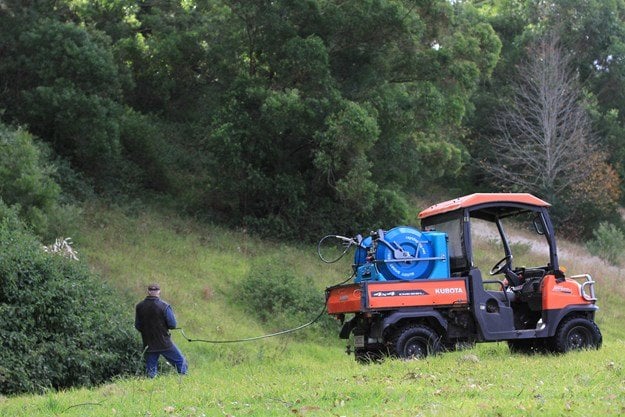

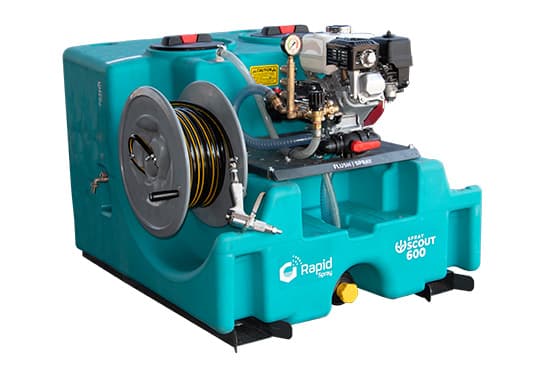

The spraying tank compact design makes it ideal for utes, trailers and farm vehicles. There are multiple options available for the Spray Scout including a choice of 360L or 600L tank capacity, a choice of pump and motors and a selection of hose reels.

DISCLAIMER

Images are indicative only. Tank dimensions and weights may vary slightly due to manufacturing process. Quoted flow rates are open flow. Flow rates in real world applications will vary. Additional options are not included in price and must be added to the base model. Please contact our office for further information including pricing.

UTV Spraying tank.

Rapid Spray Scout.
